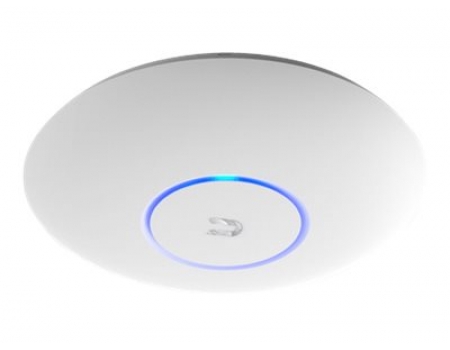

Deploy UniFi AC SHD AP in high-density environments requiring maximum wireless performance. The UniFi AC SHD AP features simultaneous dual-band, 4x4 MU-MIMO technology and convenient 802.3at PoE+ compatibility. The Wave 2 MU-MIMO technology allows the AP to communicate with multiple clients at the same time - significantly increasing multi-user throughput and overall user experience. The UniFi AC SHD AP is the first UniFi 802.11ac Wave 2 AP. It combines the performance increases from MU-MIMO technology and the use of 4x4 spatial streams to deliver up to 125% greater performance than a typical Wave 1 AP. UAP-AC-SHD also houses a dedicated security radio, used to sniff out any potential harmful packets.
| UAP-AC-SHD | |
|---|---|
| Dimensions | ∅220, Height:48.1 mm |
|
Weight With Mounting Hardware Without Mounting Hardware |
830 g 700 g |
| Enclosure Characteristics | Outdoor UV Stabilized Plastic |
| HARDWARE | |
| Processor Specs | dual-core SMP Krait CPU at 1.4 GHz |
| Memory Information | 4Gbits DD3 |
| Management Interface | Ethernet or WiFi |
| Networking Interface | (2) 10/100/1000 Ethernet |

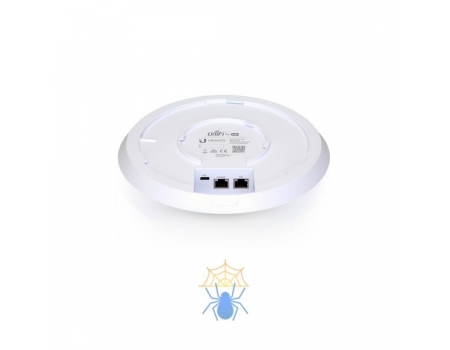

| Ports | (2) Ethernet RJ45, (1) USB Type C |
| Max. Power Consumption | 20W |
| Supported Voltage Range | 44VDC to 57VDC |
| ESD/EMP Protection | 24KV +/- Air / Contact |
| Operating Temperature | -10C to 70C |
| Operating Humidity | 5 to 95% Noncondensing |
| Buttons | QTY1 reset to factory defaults |
| Antennas |
QTY 2 2.4G internal single band antennas, dual polarity QTY2 5G internal single band antennas, dual polarity |
| Antenna Gain |
2.4G 3dBi 5G 4dBi |
|
Max. TX Power 2.4 GHz 5 GHz |
25 dBm 25 dBm |
|
MIMO 2.4 GHz 5 GHz |
4x4 4x4 |
|
Speeds 2.4 GHz 5 GHz |
800Mbps 1.7Gbps |
