Specification
Display
Screen size 2.4-inch
Type LCD-TFT display screen
Audio
Audio output 1 loudspeaker, 1 buzzer
Network
Wired network TCP/IP, 10/100Mbps, self-adaptive
Communication protocol TCP/IP, ISUP
Interface
Network interface 1
Lock control 1
Exit button 1
Door contact input 1
TAMPER 1
USB 1
Capacity
Card capacity 1000
Fingerprint capacity 1000
Event capacity 100,000
Authentication
Card type Mifare 1 card
Card reading distance 0 to 5 cm
Fingerprint module Optical fingerprint module
Fingerprint comparing mode 1:1 and 1:N
Fingerprint recognition duration ＜ 1 s
General
Power supply 12 VDC/1 A
Working temperature -10 °C to +55 °C (14 °F to +131 °F)
Working humidity 10% to 90% (no condensing)
Color Silver
Dimensions 140 mm × 155 mm × 30 mm (5.51" × 6.01" × 1.18")
Self Service Reports (SSR) Stand-alone operation, calculate attendance data and export reports via USB interface
Installation Wall mounting
Weight
Gross weight: 0.78 kg (1.72 lbs)
Net weight: 0.22 kg (0.48 lbs
| 1 |

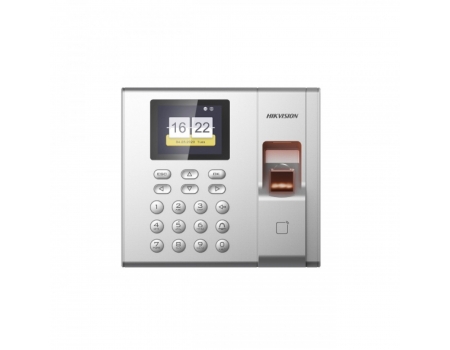

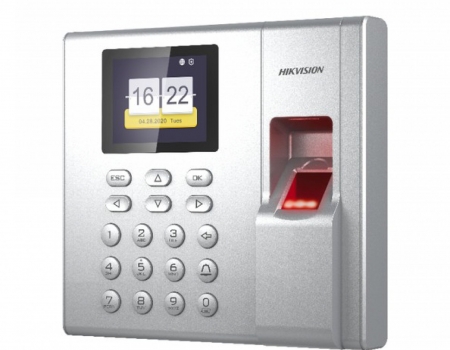

K1T8003 Fingerprint Time Attendance Terminal |
