EC16 is the second generation of ZKTeco's company elevator control panel. It can support fingerprint and RFID card verification through RS485 direct connection. At the same time, it supports dynamic QR code access, facial recognition, and fingerprint recognition through ZKTeco's ZKBio CVSecurity security platform.
More infoSPECIFICATIONS
Model
EC16
Fingerprint Capacity
30,000
Card Capacity
100,000
Communication
TCP/IP ,USB Host ,Wiegand,RS485,
Transaction Capacity
200,000
Floor Button Control Relay
16 Dual Relay
Number of Ports
2 TCP/IP, 2 Wiegand (26/34/66 bits),
1 RS485 (OSDP), 1 RS485 (expansion board),
1 Open, 1 close, 1 AUX output,
1 AUX in, 1 voice output(coming soon),
1 LED Output(COMMRUN/PWR/GND),
1 FIRE,1 Emergency, 1 Power in,
1 USB 2.0 port
Additional Info
Dimension(L*W): 165*230mm
Operating Temperature: -20°C to 55°C
Storage Temperature: -25°C to 65°C
Operating Humidity: 10% to 90% RH
Data Protection: AES256, HTTPS, TLS1.2
Special Functions
Protocol: ZKTeco A & C Push
Supported QR Code Reader : QR500/600 Series
RS485 address Set by DIP switch
Max Supported Expansion Board: 7pcs (DEX16)
over RS485
Certifications
CE, FCC, ISO9001, ISO14001
Compatibility
ZKBio CVSecurity
Power Supply
DC 12V 3A

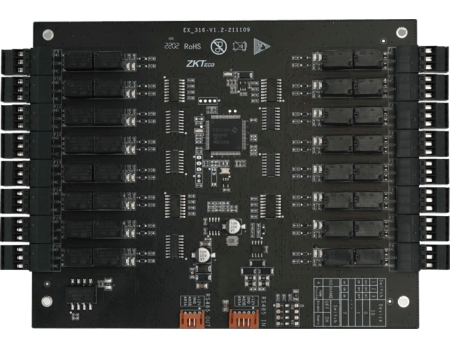

Model
DEX16
Floor Button Control Relay
16 Dual Relay
Number of Ports
1 RS485 IN,
1 RS458 OUT
Communication
RS485(OSDP)
Additional Info
Communication to EC16 : RS485
Operating Temperature :-20°C to 55°C
Storage Temperature: -25°C to 65°C
Operating Humidity:10% to 90% RH
Dimension(L*W):165*160mm
Certifications
CE, FCC, ISO9001, ISO14001
Compatibility
ZKBio CVSecurity
Power Supply
DC 12V 1A
| 1 | EC16 & DEX16 | Download |
|---|
