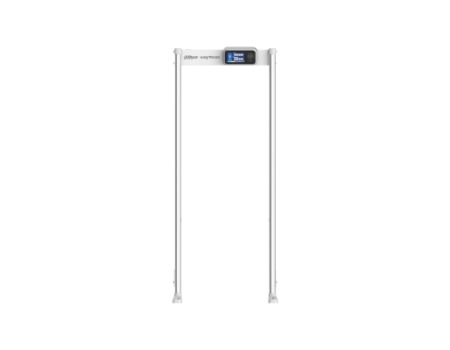

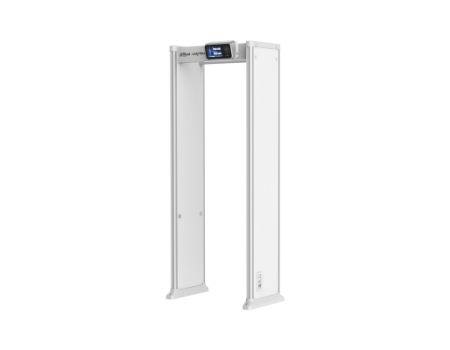

DHI-ISC-D733-S2

Device

Detection Sensitivity

NILECJ-STD-0601.00 L1-L5

Precise Positioning

33 overlapping detection zones, bilateral transmission and receipt of detection signals; 2-panel indicator lights

Zone Indication

33 independent zones selectable, and multiple metal items can be located simultaneously

IR Sensor

Supports the switching of multiple start-stop modes for two-pair of IR sensor.
Infrared sensor can reduce false alarms; automatic alarm statistics and pass/return statistics

Adjustable Sensitivity

255 adjustable sensitivity levels in each detection zone (sensitivity increases by levels)

Security level

Supports 1-100 selectable security Level.

POST (Power On Self Test)

Power on self test.

Operating Frequency

Supports 1-100 selectable operating frequency ranges, and supports automatic frequency search.

Alarm Volume

Support 0-10 adjustable alarm volume, mute mode can be set.

Alarm Tone

Supports 9 kinds of selectable alarm tones, and independent tone for temperature alarm.

Remote Control

An IR remote controller with maximum remote control range of 2 m (6.56 ft)

Leakage Current

<0.5 mA, complying with safety requirements for electronic devices

Certifications

Certifications

GB 15210-2018
IEC 60068-2-1
IEC 60068-2-2
CE-LVD: Low Voltage Directive 2014/35/EU
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
FCC: 47 CFR FCC Part 18, Subpart B

Safety

ICNIRP 2010 Guidelines
ICNIRP 1998 Guidelines
EC directive 2013/35/EU
EC recommendation 1999/519/EC
IEEE C95.1:2005

Ports

Power Button

Power switch on both door panels, and metal detection power switch on the front panel

Indicator

One green indicator

Environmental Noise

Monitors and displays real-time signal strength of environmental interferences

RS-485

1

Alarm In/Out

2-channel input, and 2-channel output

Power Output

12 VDC

Detector Underside Power Port

Aviation power port, 1 for each side.

Detector Underside Network Port
