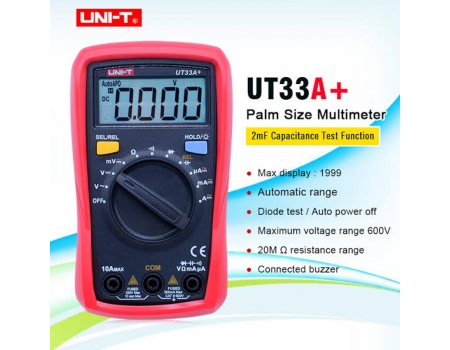

Specifications Of UNI-T UT33A+ Multimeter:
-
Brand: UNI-T
-
Model: UT33A+
-
Color: Red & gray
-
Working environment: 0-40°
-
Storage environment: -10-50°
-
Monitor: 1999counts
-
Over range indication: “OL” display
-
Battery type: 2 x 1.5v AAA batteries( not included )
-
Backlight display: yes
-
Automatic shutdown: yes
-
Diode Test: yes
-
DC voltage range: 200mV/2000mV/20V/200V/600V
-
DC voltage resolution: 0.1mV/1mV/0.01V/0.1V/1V
-
DC voltage accuracy: ±(0.7%+3)/±(0.5%+2)
-
AC voltage range: 200mV/2V/20V/200V/600V
-
AC voltage resolution: 0.1mV/0.001V/0.01V/0.1V/1V
-
AC voltage accuracy: ±(1%+2)/±(0.7%+3)/±(1.2%+3)
-
DC current: 200μA/2000μA/20mA/200mA/2A/10A
-
DC current resolution: 0.1μA/1μA/0.01mA/0.1mA/0.001A/0.01A
-
DC current accuracy: ±(1%+2)/±(1.2%+5)
-
AC current: 200μA/2000μA/20mA/200mA/2A/10A
-
AC current resolution: 0.1μA/1μA/0.01mA/0.1mA/0.001A/0.1A
-
AC current accuracy: ±(1.2%+3)/±(1.5%+5)
-
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/20MΩ/200MΩ
-
Resistance resolution: 0.1Ω/1Ω/10Ω/100Ω/10kΩ/100KΩ
-
Resistance accuracy: ±(1%+2)/±(0.8%+2)/±(1.2%+3)/±(5%+10)
-
Capacitance range: 2nF/20nF/200nF/2μF/200μF/2mF
-
Capacitance resolution: 0.001nF/0.01nF/0.1nF/1nF/100nF/0.001mF
-
Capacitance accuracy: ±(5%+5)/±(4%+8)/±10%
-
Item weight: 187g/6.61oz
-
Item size: 135 x 80 x 48mm/ 5.31 x 3.15 x 1.89in
