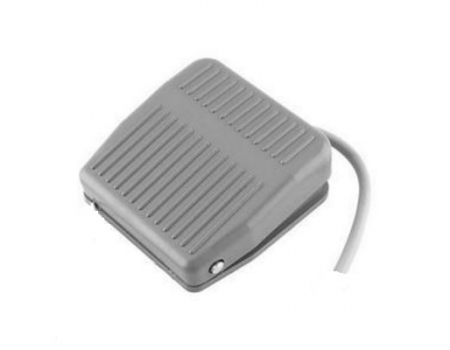

Foot Switch New Electric SPDT TFS-201 Pedal Momentary Control
Item Name: Foot Pedal Switch
Action Type: Momentary
Contact Type : SPDT(1NO 1NC)
Rating : AC250V 10A
Size: 8.2*7.2*3cm
used to frequently turn on and off the loaded circuit;
According to the equipped travel switch, it can be customized with -locking function of the contact, the contact is locked by operating the pedal, and the contact is unlocked by the second operation of the pedal to achieve the OFF-ON-OFF alternate or start/stop operation. the way;
The pedal anti-skid design makes the operation more effective, convenient and safe;
Using double silicone rubber gasket, the waterproof level can reach IP67, thus ensuring high reliability and safety, and adopting limit switch action mode to achieve high reliability;
The limiter adopts adjustable mechanical memory structure, reliable performance and high sensitivity.
General performance
Contact resistance: 50mOhm or less (first time)
Insulation resistance: 100MOhm or more, 500VDC test
dielectric withstand voltage: 2000V AC, time 1 minute
Mechanical life: 1 million times
life: 100,000 times
Ambient temperature: -250C ~ +700C (no condensation, no ice)
Environmental humidity: 45%~85%RH
Cable Length: 15CM
Color: Gray
Material: plastic
Net Weight: 15
What’s in the box
1 x Foot Switch
