Function:
With the 100m signal receiving range from detector and 500m sending range to alarm host, this signal repeater plays an important role in boosting the signal range if the distance between alarm host and detector is too long or obstacles exist.
Operation Method: Worked as a wireless signal repeater as well as a host, it needs programming with your existing accessories(door contact, pir sensor and remote) before use. 5 wireless zones totally 99 detectors and 99 remote controls supportable. Easy operation with the setting key, indicator light turns green when working.
Features:
1. Five wireless zones 1-5 zone, the wireless detector can learn the code to the relay of the five wireless zones, each zone detector number is limited but the total number of zone detectors no more than 99.
2.Can learn remote control remote control signal, up to learn 99 remote control.

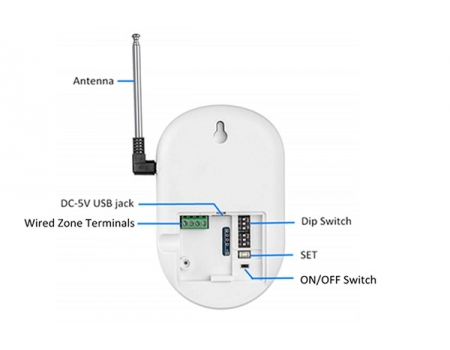

3.Two wired zones Z4-Z5 zone, wired zone Optional short circuit alarm or open circuit alarm (NO or NC).
4. Compatible with millions of chips 1527 (resistance 150K-470K) and ordinary coding chip 2262 (resistance 1.5M-4.7M) full range of remote control and detectors.
5.Built-in rechargeable battery, with external power supply.
6.Built-in EEPROM chip, in the case of shutdown or power failure, learning the code on the remote control and detectors and other information will not be lost to ensure information security.
Technical-Parameter
1. External power supply: DC5V or DC12V;
2. Built-in battery: Ni-Hi DC 4.2V
3. Quiescent current: <20mA / DC 5V or <13mA / DC 12V
4. Operating current: <500mA / DC 5V or <100mA / DC 12V
5. Receive, detection frequency: 433 MHz (ASK) / 868MHz(FSK)
6. Maximum number of the remote control: 99pcs
7. Maximum number of the wireless detectors: 99pcs
8. Received detection distance: 100M or so (open ground)
9. Send distance: 500M or so (open)
10. Working temperature: -20 ℃ -55 ℃
Package including:

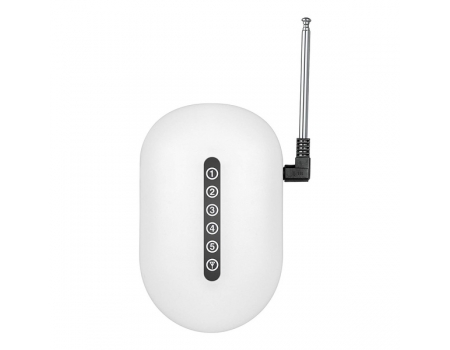

1 X Wireless signal repeater Z09

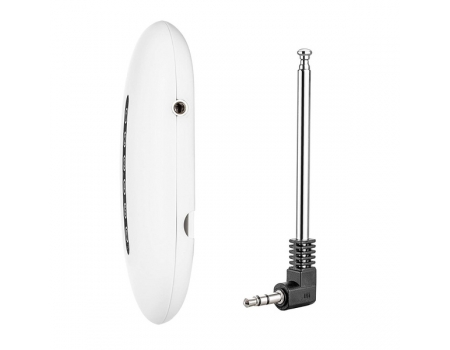

1 X Antenna
1 X Power adapter
1 X User manual
